ISO 7436
» Resources » Dimensional Standards » ISO » Screws » ISO 7436
» Resources » Dimensional Standards » ISO » Screws » ISO 7436

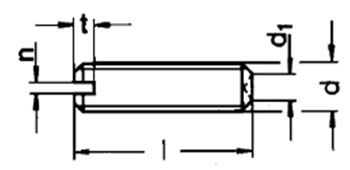

| Dimensions | dz | n | t |
|---|---|---|---|
| M 2.5 | 1.2 | 0.4 | 0.72 |
| M 3 | 1.4 | 0.4 | 0.8 |
| M 4 | 2 | 0.6 | 1.12 |
| M 5 | 2.5 | 0.8 | 1.28 |
| M 6 | 3 | 1 | 1.6 |
| M 8 | 5 | 1.2 | 2 |
| M 10 | 6 | 1.6 | 2.4 |
| M 12 | 8 | 2 | 2.5 |
