ISO 7435
» Resources » Dimensional Standards » ISO » Screws » ISO 7435
» Resources » Dimensional Standards » ISO » Screws » ISO 7435

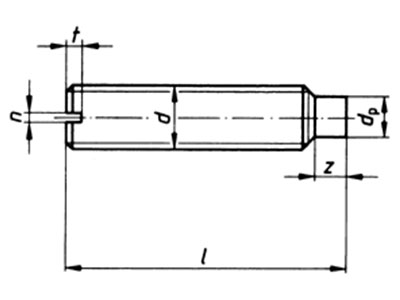

| Dimensions | dp | z | n | t |
|---|---|---|---|---|
| M 3 | 2 | 1.5 | 0.4 | 0.8 |
| M 4 | 2.5 | 2 | 0.6 | 0.96 |
| M 5 | 3.5 | 2.5 | 0.8 | 1.12 |
| M 6 | 4 | 3 | 1 | 1.28 |
| M 8 | 5.5 | 4 | 1.2 | 1.6 |
| M 10 | 7 | 5 | 1.6 | 2 |
| M 12 | 8.5 | 6 | 2 | 2.4 |
