ISO 7434
» Resources » Dimensional Standards » ISO » Screws » ISO 7434
» Resources » Dimensional Standards » ISO » Screws » ISO 7434

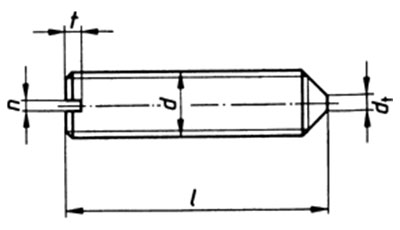

| Dimensions | n | t | dt max. |
|---|---|---|---|
| M 1.4 | 0.2 | 0.48 | 0.14 |
| M 1.6 | 0.25 | 0.56 | 0.16 |
| M 2 | 0.25 | 0.64 | 0.2 |
| M 2.5 | 0.4 | 0.72 | 0.25 |
| M 3 | 0.4 | 0.8 | 0.3 |
| M 4 | 0.6 | 1.12 | 0.4 |
| M 5 | 0.8 | 1.28 | 0.5 |
| M 6 | 1 | 1.6 | 1.5 |
| M 8 | 1.2 | 2 | 2 |
| M 10 | 1.6 | 2.4 | 2.5 |
| M 12 | 2 | 2.8 | 3 |
