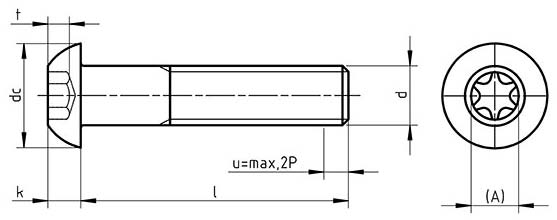

ISO 7380 TX
» Resources » Dimensional Standards » ISO » Screws » ISO 7380 TX
» Resources » Dimensional Standards » ISO » Screws » ISO 7380 TX
| thread d | dc min | k max | s |
|---|---|---|---|
| M 3 | 5.74 | 1.65 | 2 |
| M 4 | 8.24 | 2.2 | 2.5 |
| M 5 | 10.4 | 2.75 | 3 |
| M 6 | 12.2 | 3.3 | 4 |
| M 8 | 16.4 | 4.4 | 5 |
| M 10 | 20.22 | 5.5 | 6 |
| M 12 | 24.32 | 6.6 | 8 |
| M 16 | 32 | 8.8 | 10 |
