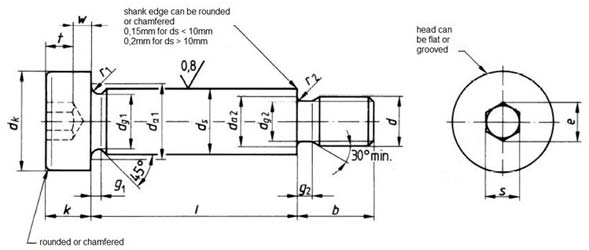

ISO 7379 Dimensions for Shoulder Screws
d
ds
≤ dk
≤ k
s
b
M5
6
10.22
4.5
3
9.5
M6
8
13.27
5.5
4
11
M8
10
16.27
7
5
13
M10
12
18.27
8.9
6
16
M12
16
24.33
10.11
8
18
M16
20
30.33
16
12
27
M20
24
36.39
16
12
27
