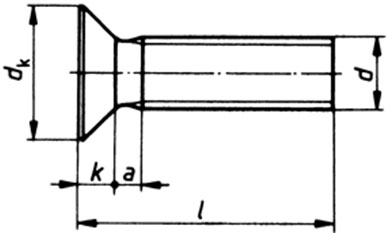

ISO 7046
» Resources » Dimensional Standards » ISO » Screws » ISO 7046
» Resources » Dimensional Standards » ISO » Screws » ISO 7046
| d | k max | d2 | m | Bit PH |
|---|---|---|---|---|
| M 2.5 | 1.5 | 4.7 | 2.5 | 1 |
| M 3 | 1.65 | 5.6 | 2.9 | 1 |
| M 4 | 2.7 | 8.4 | 4.4 | 2 |
| M 5 | 2.7 | 9.3 | 4.6 | 2 |
| M 6 | 3.3 | 11.3 | 6.6 | 3 |
| M 8 | 4.65 | 15.8 | 8.7 | 4 |
| M 10 | 5 | 18.3 | 9.4 | 4 |
