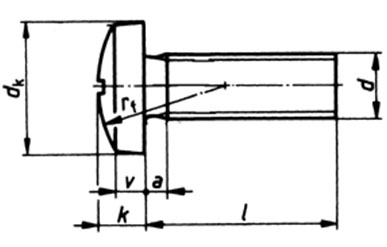

ISO 7045
» Resources » Dimensional Standards » ISO » Screws » ISO 7045
» Resources » Dimensional Standards » ISO » Screws » ISO 7045
| d | k | d2 | m | blade PH |
|---|---|---|---|---|
| M 2.5 | 2.1 | 5 | 2.7 | 1 |
| M 3 | 2.4 | 5.6 | 3.1 | 1 |
| M 4 | 3.1 | 8 | 4.6 | 2 |
| M 5 | 3.8 | 9.5 | 5.3 | 2 |
| M 6 | 4.6 | 12 | 6.8 | 3 |
| M 8 | 6 | 16 | 9 | 4 |
