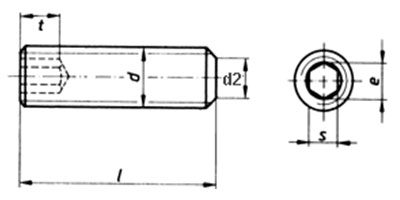

ISO 4026
» Resources » Dimensional Standards » ISO » Screws » ISO 4026
» Resources » Dimensional Standards » ISO » Screws » ISO 4026
| Dimensions | s | dp max |
|---|---|---|
| M 1.4 | 0.7 | 0.45 |
| M 1.6 | 0.7 | 0.8 |
| M 2 | 0.9 | 1 |
| M 2.5 | 1.3 | 1.5 |
| M 3 | 1.5 | 2 |
| M 4 | 2 | 2.5 |
| M 5 | 2.5 | 3.5 |
| M 6 | 3 | 4 |
| M 8 | 4 | 5.5 |
| M 10 | 5 | 7 |
| M 12 | 6 | 8.5 |
| M 14 | 6 | 10 |
| M 16 | 8 | 12 |
| M 20 | 10 | 15 |
| M 24 | 12 | 18 |
