ISO 2009
» Resources » Dimensional Standards » ISO » Screws » ISO 2009
» Resources » Dimensional Standards » ISO » Screws » ISO 2009

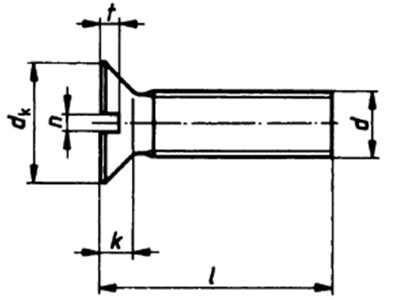

| d | k max. | t max. | n | dk |
|---|---|---|---|---|
| M 2 | 1.2 | 0.6 | 0.5 | 3.8 |
| M 2.5 | 1.5 | 0.7 | 0.6 | 4.7 |
| M 3 | 1.65 | 0.85 | 0.8 | 5.6 |
| M 4 | 2.7 | 1.1 | 1 | 8.4 |
| M 5 | 2.7 | 1.3 | 1.2 | 9.3 |
| M 6 | 3.3 | 1.6 | 1.6 | 11.3 |
| M 8 | 4.65 | 2.1 | 2 | 15.8 |
| M 10 | 5 | 2.6 | 2.5 | 18.3 |
| M 12 | 6 | 3 | 3 | 22 |
