ISO 1051 A
» Resources » Dimensional Standards » ISO » Rivets » ISO 1051 A
» Resources » Dimensional Standards » ISO » Rivets » ISO 1051 A

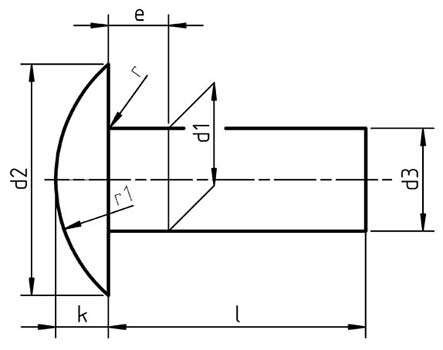

| d1 | d2 | e | k |
|---|---|---|---|
| 1.4 | 3.2 | 0.7 | 0.7 |
| 1.6 | 3.6 | 0.8 | 0.8 |
| 2 | 4.5 | 1 | 1 |
| 2.5 | 5.6 | 1.25 | 1.3 |
| 3 | 6.8 | 1.5 | 1.5 |
| 3.5 | 7.8 | 1.75 | 1.8 |
| 4 | 9 | 2 | 2 |
| 5 | 11.2 | 2.5 | 2.5 |
| 6 | 13.5 | 3 | 3 |
