ISO 8752
» Resources » Dimensional Standards » ISO » Pins » ISO 8752
» Resources » Dimensional Standards » ISO » Pins » ISO 8752

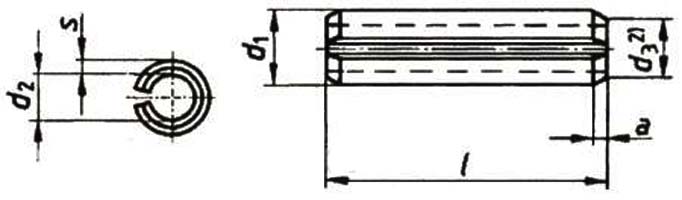

| Dimensions | a | d1 | d2 | s | shearing |
|---|---|---|---|---|---|
| 1 | 0.15 | 1.3 | 0.8 | 0.2 | 0.7 |
| 1.5 | 0.25 | 1.8 | 1.1 | 0.3 | 1.58 |
| 2 | 0.35 | 2.4 | 1.5 | 0.4 | 2.82 |
| 2.5 | 0.4 | 2.9 | 1.8 | 0.5 | 4.38 |
| 3 | 0.5 | 3.5 | 2.1 | 0.6 | 6.32 |
| 3.5 | 0.6 | 4 | 2.3 | 0.75 | 9.06 |
| 4 | 0.65 | 4.6 | 2.8 | 0.8 | 11.24 |
| 4.5 | 0.8 | 5.1 | 2.9 | 1 | 15.36 |
| 5 | 0.9 | 5.6 | 3.4 | 1 | 17.54 |
| 6 | 1.2 | 6.7 | 3.9 | 1.25 | 26.04 |
| 7 | 1.8 | 7.8 | 4 | 1.5 | - |
| 8 | 2 | 8.8 | 5.5 | 1.5 | 42.76 |
| 9 | 2 | 9.5 | 6 | 2 | - |
| 10 | 2 | 10.8 | 6.5 | 2 | 70.16 |
| 12 | 2 | 12.8 | 7.5 | 2.5 | 104.1 |
| 13 | 2 | 13.8 | 8.5 | 2.5 | 115.12 |
| 14 | 2 | 14.8 | 8.5 | 3 | 144.7 |
| 16 | 2 | 16.8 | 10.5 | 3 | 171.0 |
| 18 | 2 | 16.9 | 11.5 | 3.5 | 222.5 |
| 20 | 3 | 20.9 | 12.5 | 4 | 280.6 |
| 21 | 3 | 21.9 | 13.5 | 4 | 298.2 |
| 25 | 3 | 25.9 | 15.5 | 5 | 438.5 |
| 28 | 3 | 28.9 | 17.5 | 5.5 | 542.6 |
| 30 | 3 | 30.9 | 18.5 | 6 | 631.4 |
| 35 | 3 | 35.9 | 22.15 | 7 | 859.0 |
| 40 | 4 | 40.9 | 25.5 | 7.5 | 1068 |
