ISO 8750

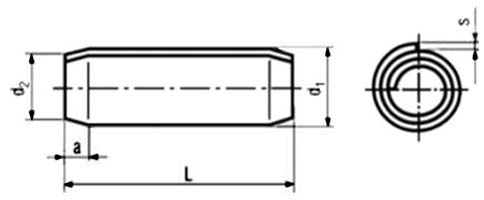

Dimensions of Spiral Span Pin

Dimensions	a	s	d1	d2	shearing
1	0.3	0.08	1.1	0.95	0.6
1.5	0.5	0.13	1.62	1.4	1.45
2	0.7	0.17	2.15	1.9	2.5
2.5	0.8	0.21	2.65	2.35	3.9
3	1	0.25	3.24	2.85	5.5
3.5	1.2	0.29	3.67	3.35	7.5
4	1.3	0.33	4.2	3.8	9.6
5	1.7	0.42	5.25	4.8	15
6	2	0.5	6.25	5.8	22
8	3	0.67	8.35	7.75	39
10	3	0.84	10.45	9.6	62
12	4	1	12.5	11.5	89
14	4.5	1.2	14.55	13.5	120
16	5	1.3	16.55	15.4	155
