ISO 8747
»
Resources
»
Dimensional Standards
»
ISO
»
Pins
» ISO 8747

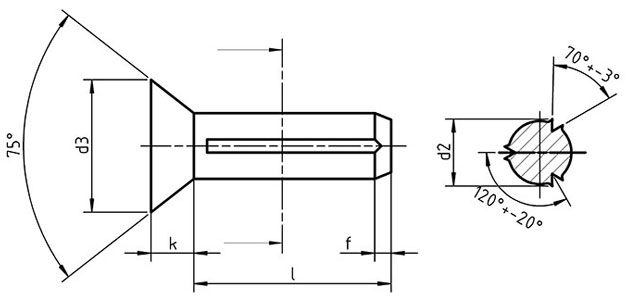

Dimensions of Countersunk Head Grooved Pin
d
d2
d3
k
f
2
2.15
3.5
1
0.5
3
3.2
5.2
1.4
1
4
4.25
7
2
1.15
5
5.25
8.8
2.5
1.15
6
6.3
10.5
3
2
