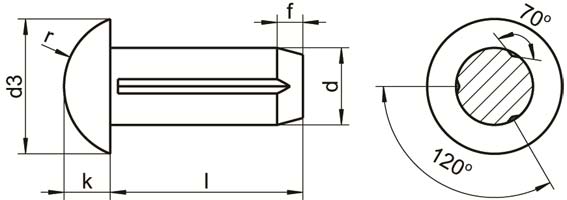

ISO 8746
» Resources » Dimensional Standards » ISO » Pins » ISO 8746
» Resources » Dimensional Standards » ISO » Pins » ISO 8746
| d | d2 | d3 | k | r | f |
|---|---|---|---|---|---|
| 1.4 | 1.5 | 2.4 | 0.8 | 1.4 | 0.5 |
| 1.6 | 1.7 | 2.8 | 1 | 1.6 | 0.5 |
| 2 | 2.15 | 3.5 | 1.2 | 1.9 | 0.5 |
| 2.3 | 2.5 | 4.0 | 1.4 | 2.1 | 0.7 |
| 2.5 | 2.7 | 4.4 | 1.5 | 2.4 | 0.7 |
| 2.6 | 2.8 | 4.5 | 1.6 | 2.6 | 0.7 |
| 3 | 3.2 | 5.2 | 1.8 | 2.8 | 4 |
| 4 | 4.25 | 7 | 2.4 | 3.8 | 1.5 |
| 5 | 5.25 | 8.8 | 3 | 4.6 | 1.5 |
| 6 | 6.3 | 10.5 | 3.6 | 5.7 | 2 |
