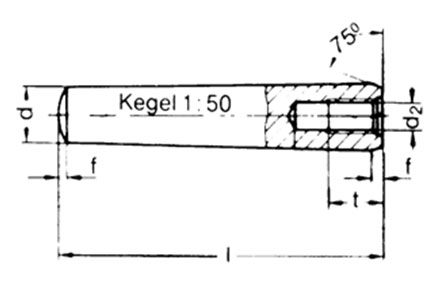

ISO 8736 Taper Pins with Internal Threads

Dimensions of Taper Pins with Internal Threads

d d2 t1 a t2 min
6 M 4 6 0.8 10
8 M 5 8 1 12
10 M 6 10 1.2 16
12 M 8 12 1.6 20
16 M 10 16 2 25
20 M 12 18 2.5 27
