ISO 1234
» Resources » Dimensional Standards » ISO » Pins » ISO 1234
» Resources » Dimensional Standards » ISO » Pins » ISO 1234

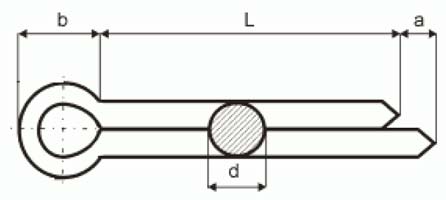

| Maße | a min | b | c max | für Splintloch | für Schrauben | für Bolzen |
|---|---|---|---|---|---|---|
| 1 | 0.8 | 3 | 1.8 | 1 | 3.5 - 4.5 | 3 - 4 |
| 1.2 | 1.25 | 3 | 2 | 1.2 | 4.5 - 5.5 | 4 - 5 |
| 1.6 | 1.25 | 3.2 | 2.8 | 1.6 | 5.5 - 7 | 5 - 6 |
| 2 | 1.25 | 4 | 3.6 | 2 | 7 - 9 | 6 - 8 |
| 2.5 | 1.25 | 5 | 4.6 | 2.5 | 9 - 11 | 8 - 9 |
| 3.2 | 1.6 | 6.4 | 5.8 | 3.2 | 11 - 14 | 9 - 12 |
| 4 | 2 | 8 | 7.4 | 4 | 14 - 20 | 12 - 17 |
| 5 | 2 | 10 | 9.2 | 5 | 20 - 27 | 17 - 23 |
| 5.5 | - | - | - | 5.5 | 21 - 27 | 18 - 23 |
| 6.3 | 2 | 12.6 | 11.8 | 6.3 | 27 - 39 | 23 - 29 |
| 8 | 2 | 16 | 15 | 8 | 39 - 44 | 29 - 44 |
| 10 | 3.2 | 20 | 19 | 10 | 44 - 69 | 44 - 69 |
| 13 | 3.2 | 26 | 24.8 | 13 | 69 - 110 | 69 - 100 |
| 16 | 3.2 | 32 | 30.8 | 16 | 100 - 160 | 110 - 160 |
