DIN 70952

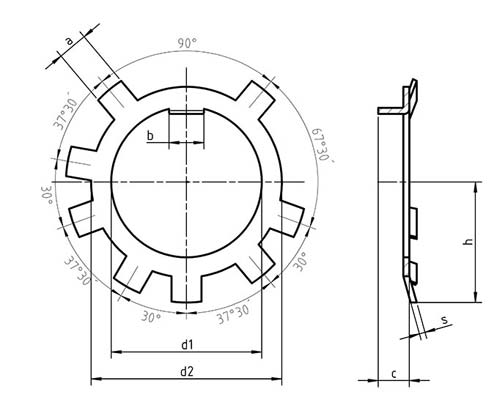

DIN 70952 Tab washers for slotted nut to DIN 70852 Dimensions

d1	d2	e	f	b1	b2	c	a
10	16	11	8.9	4	4	3	1
12	18	12	10.9	4	4	3	1
16	23	14.5	14	5	5	3	1
18	24	16.5	16.9	5	5	4	1
20	27	17.5	18.9	5	5	4	1
22	30	19	20.9	6	6	4	1
24	32	20	22.9	6	7	5	1.2
28	36	23	26.9	6	7	5	1.2
30	38	24	28.9	6	7	5	1.2
32	41	25.5	30.9	6	7	5	1.2
35	43	26.5	33.9	6	7	5	1.2
38	47	28.5	36.6	6	8	5	1.2
40	49	29.5	38.9	6	8	5	1.2
42	52	31	40.6	7	8	5	1.2
45	54	32	43.6	7	8	5	1.2
48	57	33.5	46.7	7	8	5	1.5
50	60	35	48.7	7	8	5	1.5
52	62	37	50.7	7	8	6	1.5
55	67	39.5	53.7	7	10	6	1.5
60	71	41.2	58.7	10	10	6	1.5
65	76	44	63.7	10	10	6	1.5
70	81	46.5	68.7	10	10	6	1.5
75	86	50	73.2	10	10	7	1.8
80	91	52.5	78.2	10	10	7	1.8
85	99	56.6	83.2	10	10	7	1.8
90	103	58.5	88.2	10	10	7	1.8
95	109	62.5	93.2	10	12	8	1.8
100	116	66	98.2	10	12	8	1.8
105	121	68.5	103.2	10	12	8	1.8
