DIN 6798 V

Equivalent Standards

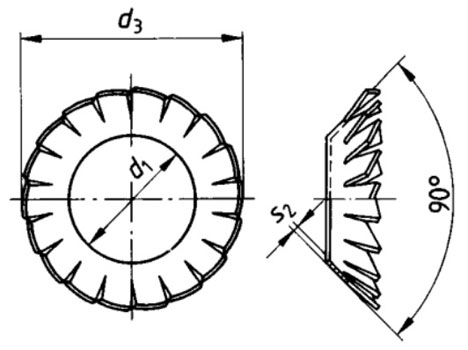

DIN 6798 V Serrated lock washers, V - conical Dimensions

Nominal Size	d1		d3 approx.	s2	Min. number of teeth	Weight kg/1000pcs	For Thread
	Nominal Size - Min	Max
2.2	2.2	2.34	4.2	0.2	10	0.025	M2
2.7	2.7	2.84	5.1	0.2	10	0.03	M2.5
3.2	3.2	3.38	6	0.2	12	0.04	M3
3.7	3.7	3.88	7	0.25	12	0.075	M3.5
4.3	4.3	4.45	8	0.25	14	0.1	M4
5.3	5.3	5.48	9.8	0.3	14	0.2	M5
6.4	6.4	6.62	11.8	0.4	16	0.3	M6
8.4	8.4	8.62	15.3	0.4	18	0.5	M8
10.5	10.5	10.77	19	0.5	20	1	M10
13	13	13.27	23	0.5	26	1.5	M12
15	15	15.27	26.2	0.6	28	1.9	M14
17	17	17.27	30.2	0.6	30	2.3	M16

Weight Chart for DIN 6798 Serrated Washers

Size	Weight
	Type A/J	Type V
M1.6	0.020
M2	0.030	0.025
M2.5	0.045	0.030
M3.0	0.06	0.040
M3.5	0.11	0.075
M4	0.14	0.1
M5	0.28	0.2
M6	0.36	0.3
M7	0.50
M8	0.80	0.5
M10	1.25	1.0
M12	1.6	1.5
M14	2.3	1.9
M16	2.9	2.3
M18	5.0
M20	6.0
M22	7.5
M24	8.0
M27	12
M30	14

Weights are in kilograms per 1,000 pieces unless otherwise specified. All weights are approximations and strictly informative.
