DIN 6340
» Resources » Dimensional Standards » Washers » DIN 6340
» Resources » Dimensional Standards » Washers » DIN 6340

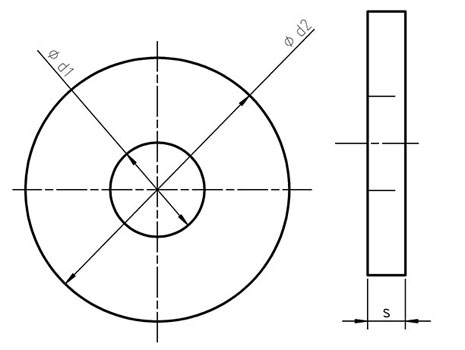

| d1 H14 | d2 h14 | s | weight (7.85kg/dm3) kg/1000 pcs |
For use with bolts of size |
|---|---|---|---|---|
| 6.4 | 17 | 3 | 4.6 | M6 |
| 8.4 | 23 | 4 | 11.3 | M8 |
| 10.5 | 26 | 4 | 16.6 | M10 |
| 13 | 35 | 5 | 32.5 | M12 |
| 17 | 45 | 6 | 64.3 | M16 |
| 21 | 50 | 6 | 76 | M20 |
| 25 | 60 | 8 | 147 | M24 |
| 31 | 68 | 10 | 226 | M30 |
