DIN 435
» Resources » Dimensional Standards » Washers » DIN 435
» Resources » Dimensional Standards » Washers » DIN 435

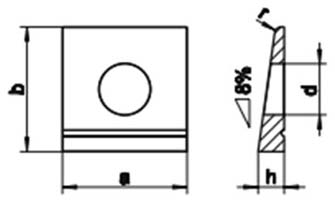

| Size | d | a | b | h | r |
|---|---|---|---|---|---|
| M8 | 9 | 22 | 22 | 4.6 | 1.2 |
| M10 | 11 | 22 | 22 | 4.6 | 1.2 |
| M12 | 13.5 | 26 | 30 | 6.2 | 1.6 |
| M16 | 17.5 | 32 | 36 | 7.5 | 2.0 |
| M20 | 22 | 40 | 44 | 9.2 | 2.4 |
| M22 | 24 | 44 | 50 | 10.0 | 2.4 |
| M24 | 26 | 56 | 56 | 10.8 | 2.4 |
| Size | Weight |
|---|---|
| M8 | 10.1 |
| M10 | 9.4 |
| M12 | 20.1 |
| M16 | 35.6 |
| M20 | 67 |
| M22 | 90 |
| M24 | 143 |
| M27 | 133 |
Weights are in kilograms per 1,000 pieces unless otherwise specified. All weights are approximations and strictly informative.
