DIN 1441

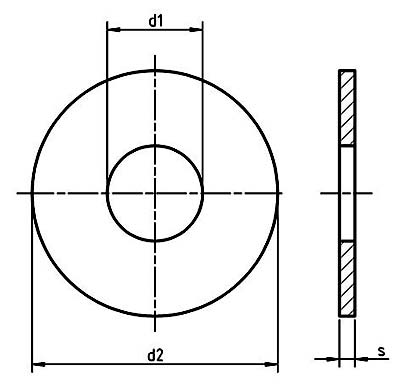

DIN 1441 Dimensions

d1	For Thread	d2	s	Weight kg/1000pcs
5.5	M5	10	0.8	0.34
7	M6	12	1.6	0.94
8	M7	14	1.6	1.3
9	M8	16	2	2.16
11	M10	20	2.5	4.3
13	M12	25	3	8.43
14	M13	25	3	7.94
15	M14	28	3	10.3
17	M16	28	3	9.16
19	M18	30	4	13.3
21	M20	32	4	14.4
23	M22	34	4	15.5
24	M23	36	4	17.8
25	M24	38	4	20
26	M25	40	4	22.8
27	M26	40	5	26.9
28	M27	40	5	25
29	M28	42	5	28.5
31	M30	45	5	32.8
34	M32	50	5	43.5
34	M33	50	5	43.5
37	M35	52	6	49.4
37	M36	52	6	49.4
41	M40	58	6	59.2
46	M45	62	7	70.6
51	M50	68	8	94.7
56	M55	75	9	138
62	M60	80	9	142
68	M65	90	9	193
72	M70	95	10	237
78	M75	100	10	241
82	M80	110	12	398
86	M85	110	12	348
92	M90	115	12	352
98	M95	120	12	355
102	M100	125	14	451
