DIN 1440

Equivalent Standards

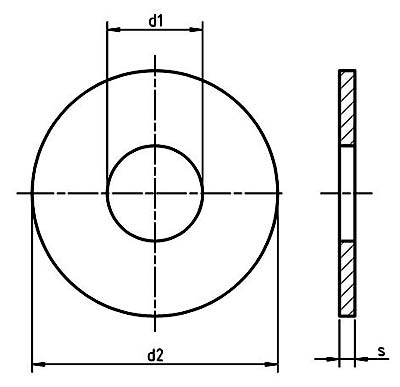

DIN 1440 Medium type washers for pins Dimensions

d1 H11	For Thread	d2	s	weight kg/1000pcs
3	M3	6	0.8	0.13
4	M4	8	0.8	0.23
5	M5	10	0.8	0.36
6	M6	12	1.6	1.05
7	M7	14	1.6	1.42
8	M8	16	2	2.22
10	M10	20	2.5	4.56
12	M12	25	3	8.99
13	M13	25	3	8.36
14	M14	28	3	10.8
16	M16	28	3	9.68
18	M18	30	4	13.8
20	M20	32	4	15
22	M22	34	4	16.2
23	M23	36	4	18.5
24	M24	38	4	21.4
25	M25	40	4	23.6
26	M26	40	5	28.5
27	M27	40	5	26.5
28	M28	42	5	29.7
30	M30	45	5	34.2
32	M32	50	5	44.8
33	M33	50	5	43.3
35	M35	52	6	52.8
36	M36	52	6	49.5
40	M40	58	6	63.7
45	M45	62	7	76.8
50	M50	68	8	101
55	M55	75	9	141
60	M60	80	9	151
65	M65	90	9	211
70	M70	95	10	250
75	M75	100	10	265
80	M80	110	12	413
85	M85	110	12	371
90	M90	115	12	370
95	M95	120	12	387
100	M100	125	14	472

DIN 1440 Flat Washers Weights

Size	Weight
M3	.13
M4	.23
M5	.36
M6	.98
M7	1.33
M8	2.22
M9	3.69
M10	4.56
M11	9.25
M12	8.99
M13	8.36
M14	10.8
M16	9.68
M18	13.8
M20	15
M22	16.2
M23	18.5
M25	23.6
M26	28.5
M28	29.7
M30	34.2
M32	44.8
M33	43.3
M35	52.8
M36	49.5
M40	63.7
M45	76.8
M50	101

Weights are in kilograms per 1,000 pieces unless otherwise specified. All weights are approximations and strictly informative.
