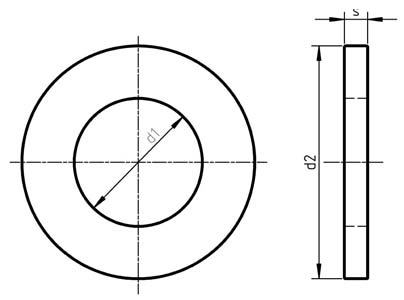

DIN 126 Plain washers Dimensions

Nominal Size	d1		d2		h
	Nominal = min	Max	Nominal = max	min	Nominal	Max	min
1.6	1.8	2.05	4	3.25	0.3	0.4	0.2
2	2.4	2.65	5	4.25	0.3	0.4	0.2
2.5	2.9	3.15	6	5.25	0.5	0.6	0.4
3	3.4	3.7	7	6.1	0.5	0.6	0.4
4	4.5	4.8	9	8.1	0.8	1	0.6
5	5.5	5.8	10	9.1	1	1.2	0.8
6	6.6	6.96	12	10.9	1.6	1.9	1.3
8	9	9.36	16	14.9	1.6	1.9	1.3
10	11	11.43	20	18.7	2	2.3	1.7
12	13.5	13.93	24	22.7	2.5	2.8	2.2
16	17.5	17.93	30	28.7	3	3.6	2.4
20	22	22.52	37	35.4	3	3.6	2.4
24	26	26.52	44	42.4	4	4.6	3.4
30	33	33.62	56	54.1	4	4.6	3.4
36	39	40	66	64.1	5	6	4
42	45	46	78	76.1	8	9.2	6.8
48	52	53.2	92	89.8	8	9.2	6.8
56	62	63.2	105	102.8	10	11.2	8.8
64	70	71.2	115	112.8	10	11.2	8.8

DIN 126 Flat Washers Weights

Size	Weight
M1.6	0.024
M1.7	0.031
M2	0.037
M2.3	0.092
M2.5	0.088
M2.6	0.127
M3	0.119
M3.5	0.155
M4	0.308
M5	0.443
M6	1.02
M7	1.39
M8	1.83
M10	3.57
M12	6.27
M14	8.62
M16	11.3
M18	14.7
M20	17.2
M22	18.3
M24	32.3
M26	43.7
M27	42.3
M28	40.9
M30	53.6
M32	77.4
M33	75.3
M35	94.3
M36	92.1
M38	136
M39	133
M40	130
M42	183
M45	220
M48	294
M50	284
M52	330
M55	431
M56	425
M58	472
M60	458
M64	492
M68	586
M72	626
M76	749

Weights are in kilograms per 1,000 pieces unless otherwise specified. All weights are approximations and strictly informative.
