Din 975
» Resources » Dimensional Standards » Threaded Bolts » Din 975
» Resources » Dimensional Standards » Threaded Bolts » Din 975

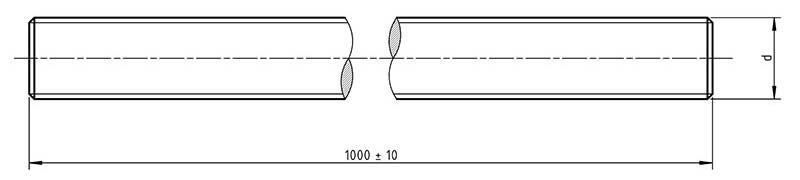

| Thread Size d | Length | Mass (7,85 kg/dm3), in kg per 1000 units | ||
|---|---|---|---|---|
| M 2 | - | - | 1000±10 | 18.7 |
| M 2.5 | - | - | 1000±10 | 30 |
| M 3 | - | - | 1000±10 | 44 |
| M 3.5 | - | - | 1000±10 | 60 |
| M 4 | - | - | 1000±10 | 78 |
| M 5 | - | - | 1000±10 | 124 |
| M 6 | - | - | 1000±10 | 177 |
| M 8 | M 8x1 | - | 1000±10 | 319 |
| M 10 | M 10x1.25 | M 10x1 | 1000±10 | 500 |
| M 12 | M 12x1.25 | M 12x1.25 | 1000±10 | 725 |
| M 14 | M 14x1.5 | - | 1000±10 | 970 |
| M 16 | M 12x1.5 | - | 1000±10 | 1330 |
| M 18 | M 18x1.5 | - | 1000±10 | 1650 |
| M 20 | M 20x1.5 | - | 1000±10 | 2080 |
| M 22 | M 22x1.5 | - | 1000±10 | 2540 |
| M 24 | M 24x2 | - | 1000±10 | 3000 |
| M 27 | M 27x2 | - | 1000±10 | 3850 |
| M 30 | M 30x2 | - | 1000±10 | 4750 |
| M 33 | M 33x2 | - | 1000±10 | 5900 |
| M 36 | M 36x3 | - | 1000±10 | 3900 |
| M 39 | M 39x3 | - | 1000±10 | 8200 |
| M 42 | M 42x3 | - | 1000±10 | 9400 |
| M 45 | M 45x3 | - | 1000±10 | 11000 |
| M 48 | M 48x3 | - | 1000±10 | 12400 |
| M 52 | M 52x3 | - | 1000±10 | 14700 |
| Size | Weight |
|---|---|
| M2 | 18.7 |
| M2.5 | 30.0 |
| M3 | 44.0 |
| M3.5 | 60.0 |
| M4 | 78.0 |
| M5 | 124 |
| M6 | 177 |
| M8 | 319 |
| M10 | 500 |
| M12 | 725 |
| M14 | 970 |
| M16 | 1330 |
| M18 | 1650 |
| M20 | 2080 |
| M22 | 2540 |
| M24 | 3000 |
| M27 | 3850 |
| M30 | 4750 |
| M33 | 5900 |
| M36 | 6900 |
| M39 | 8200 |
| M42 | 9400 |
| M45 | 11000 |
| M48 | 12400 |
Weights are in kilograms per 1,000 pieces unless otherwise specified. All weights are approximations and strictly informative.
