DIN 976

Equivalent Standards

DIN 976 Metric thread stud bolts Dimensions

d	p	L(mm)	Weight kg/1000 pcs
M 2	0.4	1000	18.7
M 2.5	0.45	1000	30
M 3	0.5	1000	44
M 3.5	0.6	1000	60
M 4	0.7	1000	78
M 5	0.8	1000	124
M 6	1	1000	177
M 8	1/1.25	1000	319
M 10	1/1.25/1.75	1000	500
M 12	1.5/2	1000	725
M 14	1.5/2	1000	970
M 16	1.5/2	1000	1330
M 18	1.5/2.5	1000	1650
M 20	1.5/2.5	1000	2080
M 22	1.5/2.5	1000	2540
M 24	2/3	1000	3000
M 27	2/3	1000	3850
M 30	2/3.5	1000	4750
M 33	2/3.5	1000	5900
M 36	3/4	1000	6900
M 39	3/4	1000	8200
M 42	3/4.5	1000	9400
M 45	3/4.5	1000	11000
M 48	3/5	1000	12400
M 52	3/5	1000	14700

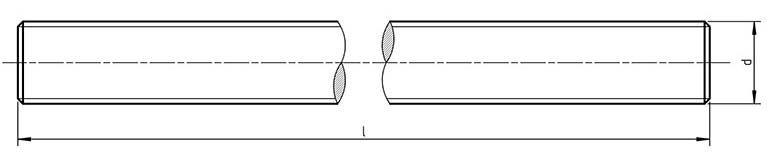

d - the nominal diameter of the thread
L - pin length
