DIN 940

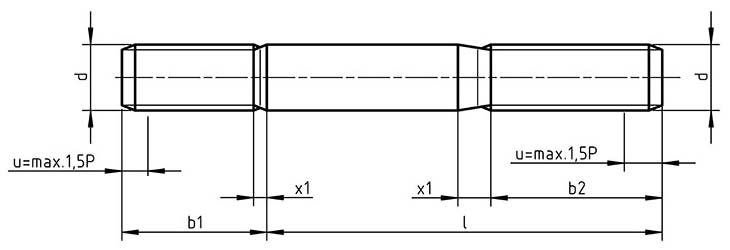

DIN 940 Studs, with engagement length 2,5 x d Dimensions

Thread d	p		ds		b1	b2			x
			max	min		l<125	125<l<200	l>200
M4	0.7	-	4	3.82	10	14	20	-	1.75
M5	0.8	-	5	4.82	12	16	22	-	2
M6	1	-	6	5.82	15	18	24	-	2.5
M7	1	-	7	6.78	18	20	26	-	2.5
M8	1.25	1	8	7.78	20	22	28	-	3.2
M10	1.5	1.25	10	9.78	25	26	32	45	3.8
M12	1.75	1.5/1.25	12	11.73	30	30	36	49	4.3
M14	2	1.5	14	13.73	35	34	40	53	5
M16	2	1.5	16	15.73	40	38	44	57	5
M18	2.5	1.5	18	17.73	45	42	48	61	6.3
M20	2.5	1.5	20	19.67	50	46	52	65	6.3
M22	2.5	1.5	22	21.67	55	50	56	69	6.3
M24	3	2	24	23.67	60	54	60	73	7.5
