DIN 939

Equivalent Standards

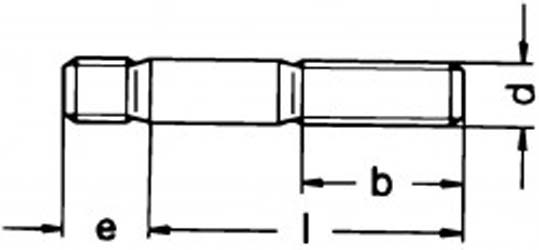

DIN 939 Stud Bolts with Metal End Length = 1.25D Dimensions

d	e	b up to 125	b up to 200	b over 200
M6	7.5	18	24	-
M8	10	22	28	-
M10	12	26	32	45
M12	15	30	36	49
M16	20	38	44	57
M20	25	46	52	65

DIN 939 Stud Bolts Weights

Diameter	M5	M6	M8	M10	M12	M16	M20	M24	M27
Length
22	3.65
25	4.11	5.85
28	4.57	6.52
30	4.88	6.96	13.1
35	5.65	8.07	15.1	24.2
40	6.42	9.18	17	27.2	41
45	7.19	10.2	19	30.3	45.4
50	7.96	11.4	21	33.3	49.9	94.9
55		12.5	22.9	36.4	54.3	103
60		13.6	24.9	39.5	58.8	111	180
65			26.9	42.6	63.2	119	192
70			28.9	45.7	67.6	126	205	305
75			30.8	48.8	72.1	134	217	323	430
80			32.8	51.8	76.5	142	229	341	452
85				54.9	81	150	241	358	475
90				58	85.4	158	254	376	497
95				61.1	89.8	166	266	394	520
100				64.2	94.3	174	279	412	542
110					103	190	303	447	587
120					112	205	328	483	632
130						221	353	518	677
140						237	377	554	722
150						253	402	589	767
160						269	427	625	812
170							451	660	857
180							476	696	902
190							501	731	947
200							525	767	992
220									1082
240									1172

Weights are in kilograms per 1,000 pieces unless otherwise specified. All weights are approximations and strictly informative.
