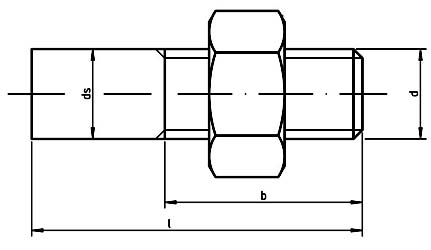

DIN 525
» Resources » Dimensional Standards » Stud Bolts » DIN 525
» Resources » Dimensional Standards » Stud Bolts » DIN 525
| Thread Size d | p | b | ds | l | weight kg/1000pcs | ||
|---|---|---|---|---|---|---|---|
| nom = max | nom | min | max | ||||
| M6 | 1 | 35 | 6 | 130 | 128 | 132 | 26 |
| M8 | 1.25 | 40 | 8 | 140 | 138 | 142 | 49.2 |
| M10 | 1.5 | 45 | 10 | 150 | 148 | 152 | 83.5 |
| M12 | 1.75 | 55 | 12 | 170 | 168 | 172 | 135 |
| M16 | 2 | 65 | 16 | 190 | 187.7 | 192.3 | 273 |
| M20 | 2.5 | 75 | 20 | 210 | 207.7 | 212.3 | 473 |
| M24 | 3 | 85 | 24 | 230 | 227.7 | 232.3 | 745 |
| M30 | 3.5 | 105 | 30 | 270 | 267.4 | 272.6 | 1370 |
| M36 | 4 | 125 | 36 | 310 | 307.4 | 312.6 | 2280 |
| M42 | 4.5 | 145 | 42 | 350 | 347.1 | 252.9 | 3510 |
| M48 | 5 | 165 | 48 | 390 | 387.1 | 392.9 | 5110 |
