DIN 965

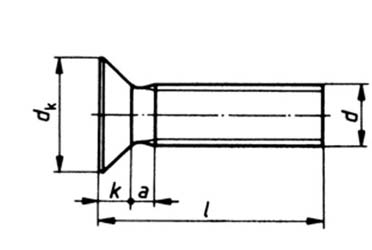

DIN 965 Philip Flat Head Countersunk Screws (Metric) Dimensions

Maße	dk	k	b	n	KS-Größe
M 1.6	3	0.96	15	0.4	0
M 2	3.8	1.2	16	0.5	1
M 2.5	4.7	1.5	18	0.6	1
M 3	5.6	1.65	19	0.8	1
M 4	7.5	2.2	22	1	2
M 5	9.2	2.5	25	1.2	2
M 6	11	3	28	1.6	3
M 8	14.5	4	34	2	4
M 10	18	5	40	2.5	4
M 12	22	6	46	3	4
M 16	29	8	58	4	4

DIN 965 Phillips Flat head Machine Screws Weights

Diameter	M2.5	M3	M3.5	M4	M5	M6	M8	M10
Length
3	0.175
4	0.206	0.290	0.434
5	0.236	0.335	0.494	0.676
6	0.266	0.379	0.554	0.754	1.21
8	0.326	0.467	0.673	0.91	1.45	2.19
10	0.386	0.555	0.792	1.06	1.70	2.54	5.03
12	0.446	0.643	0.911	1.22	1.95	2.89	5.67	9.59
14	0.507	0.731	1.03	1.37	2.19	3.25	6.30	10.6
16	0.567	0.820	1.15	1.53	2.44	3.6	6.94	11.6
18	0.627	0.908	1.27	1.68	2.69	3.95	7.57	12.6
20	0.687	0.996	1.39	1.84	2.94	4.31	8.21	13.6
22	0.747	1.08	1.51	1.99	3.18	4.66	8.84	14.6
25	0.838	1.22	1.69	2.22	3.55	5.19	9.79	16.1
28		1.35	1.87	2.46	3.93	5.72	10.7	17.6
30		1.44	1.99	2.61	4.16	6.08	11.4	18.6
35			2.29	3.00	4.65	6.96	13.0	21.1
40				3.38	5.4	7.84	14.6	23.6
45					6.02	8.73	16.2	26.1
50							17.8	28.6
55							19.4	31.1
60								33.7

Weights are in kilograms per 1,000 pieces unless otherwise specified. All weights are approximations and strictly informative.
