DIN 964

Equivalent Standards

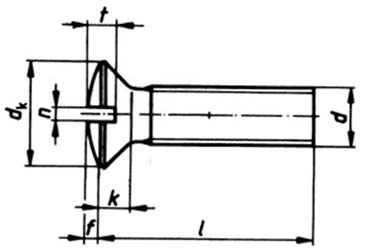

DIN 963 Slotted Raised Countersunk Head Screws Dimensions

d	k max	f	t min	t max	n
M 1	0.6	0.25	0.4	0.5	0.25
M 1.2	0.72	0.3	0.5	0.6	0.3
M 1.4	0.84	0.35	0.52	0.65	0.3
M 1.6	0.96	0.4	0.65	0.8	0.4
M 2	1.2	0.5	0.8	1.0	0.5
M 2.5	1.5	0.6	1	1.2	0.6
M 3	1.65	0.75	1.2	1.45	0.8
M 3.5	1.93	0.9	1.4	1.7	0.8
M 4	2.2	1	1.6	1.9	1
M 5	2.5	1.25	2	2.3	1.2
M 6	3	1.5	2.5	2.8	1.6
M 8	4	2	3.4	3.7	2
M 10	5	2.5	4.2	4.6	2.5
