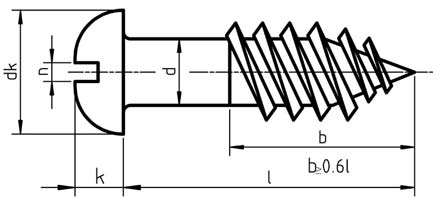

DIN 96
» Resources » Dimensional Standards » Screws » DIN 96
» Resources » Dimensional Standards » Screws » DIN 96
| d | k | dk | t min. | t max. | n |
|---|---|---|---|---|---|
| 2 | 1.4 | 4 | 0.7 | 0.9 | 0.5 |
| 2.5 | 1.7 | 5 | 0.85 | 1.1 | 0.6 |
| 3 | 2.1 | 6 | 1.05 | 1.35 | 0.8 |
| 3.5 | 2.4 | 7 | 1.2 | 1.6 | 0.8 |
| 4 | 2.8 | 8 | 1.4 | 1.8 | 1 |
| 4.5 | 3.1 | 9 | 1.55 | 2 | 1 |
| 5 | 3.5 | 10 | 1.75 | 2.3 | 1.2 |
| 6 | 4.2 | 12 | 2.1 | 2.7 | 1.6 |
| 7 | 4.9 | 14 | 2.45 | 3.2 | 2 |
| 8 | 5.6 | 16 | 2.8 | 3.6 | 2 |
