DIN 933

» Resources » Dimensional Standards » Screws » DIN 933

Equivalent Standards

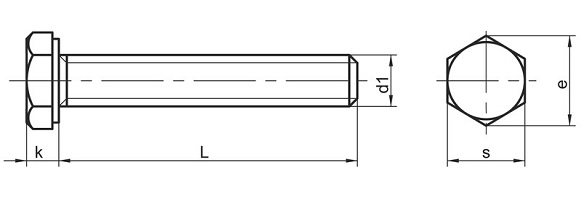

DIN 933 Hex Screws

DIN 933 Hex Screws Dimensions

Size Width Across Flat (s) Head Height (k)
DIN 933 ISO 4017 DIN 933 ISO 4017
Min Max Min Max Min Max Min Max
M2 3.82 4.00 3.82 4.00 1.28 1.52 1.275 1.525
M3 5.32 5.50 5.32 5.50 1.88 2.12 1.875 2.125
M4 6.78 7.00 6.78 7.00 2.68 2.92 2.675 2.925
M5 7.78 8.00 7.78 8.00 3.35 3.65 3.35 3.65
M6 9.78 10.00 9.78 10.00 3.85 4.15 3.85 4.15
M8 12.73 13.00 12.73 13.00 5.15 5.45 5.15 5.45
M10 16.73 17.00 15.73 16.00 6.22 6.58 6.22 6.58
M12 18.67 19.00 17.73 18.00 7.32 7.68 7.32 7.68
M14 21.67 22.00 20.67 21.00 8.62 8.98 8.62 8.98
M16 23.67 24.00 23.67 24.00 9.82 10.2 9.82 10.18
M18 26.67 27.00 26.67 27.00 11.28 11.7 11.285 11.715
M20 29.67 30.00 29.67 30.00 12.28 12.7 12.285 12.715
M22 31.61 32.00 33.38 34.00 13.78 14.2 13.785 14.215
M24 35.38 36.00 35.38 36.00 14.78 15.2 14.785 15.215
M27 40.00 41.00 40.00 41.00 16.65 17.4 16.65 17.35
M30 45.00 46.00 45.00 46.00 18.28 19.1 18.28 19.12
M33 49.00 50.00 49.00 50.00 20.58 21.4 20.58 21.42
M36 53.80 55.00 53.80 55.00 22.08 22.9 22.08 22.92
M39 58.80 60.00 58.80 60.00 24.58 25.4 24.58 25.42
M42 63.10 65.00 63.10 65.00 25.58 26.4 25.58 26.42
M45 68.10 70.00 68.10 70.00 27.58 28.4 27.58 28.42
M48 73.10 75.00 73.10 75.00 29.58 30.4 29.58 30.42
M52 78.10 80.00 78.10 80.00 32.5 33.5 32.5 33.5
M56 82.80 85.00 82.80 85.00 34.5 35.5 34.5 35.5
M60 87.80 90.00 87.80 90.00 37.5 38.5 37.5 38.5
M64 92.80 95.00 92.80 95.00 39.5 40.5 39.5 40.5
M72 102.80 105.00 -- -- 44.5 45.5 -- --

DIN 933 Hex Screws Weights

Diameter M3 M4 M5 M6 M7 M8 M10 M12 M14 M16 M18 M20 M22 M24 M30 M36 M48
Length
4 0.48
5 0.53 1.26
6 0.57 1.33 2.18 3.40
7 0.61 1.41 2.28 3.57 5.60
8 0.66 1.49 2.38 3.74 5.85 8.5 15.2
10 0.75 1.64 2.63 4.08 6.35 9.1 16.2 23.3 38.0
12 0.84 1.80 2.87 4.42 6.85 9.8 17.2 25.0 40.0 52.9
14 0.92 1.95 3.12 4.76 7.35 10.5 18.2 26.4 42.0 55.6
16 1.00 2.10 3.37 5.11 7.85 11.1 19.2 27.7 44.0 58.3 82.0 105 133 173
18 1.09 2.25 3.62 5.45 8.35 11.7 20.2 29.1 46.0 60.9 84.9 110 137 178
20 1.18 2.41 3.87 5.80 8.85 12.3 21.2 31.0 48.0 63.5 87.2 114 143 184
22 1.27 2.56 4.12 6.15 9.35 12.9 22.2 33.0 50.0 66.2 92.2 119 148 190
25 1.40 2.80 4.49 6.65 10.00 13.9 23.7 34.1 53.0 70.2 95.8 124 155 199
28 1.52 3.04 4.86 7.15 10.70 14.9 25.2 36.2 55.9 74.2 100.0 129 161 200
30 1.61 3.19 5.11 7.51 11.30 15.5 26.2 37.7 57.9 76.9 104.0 134 168 214
35 3.57 5.73 8.37 12.50 17.1 28.7 41.3 62.9 83.5 112.0 145 181 229 424 670
40 3.96 6.35 9.23 13.80 18.7 31.2 44.9 67.9 90.2 120.0 155 193 244 448 714 1590
45 4.34 6.99 10.10 15.00 20.3 33.7 48.5 72.9 97.1 128.0 165 206 259 472 748 1650
50 4.73 7.59 11.00 16.30 21.8 36.2 52.0 77.9 103.0 136.0 176 219 274 496 783 1710
55 5.12 8.21 11.90 17.50 23.4 38.7 55.6 82.8 110.0 145.0 186 232 289 519 817 1770
60 5.50 8.83 12.70 18.70 25.0 41.3 58.2 87.8 117.0 153.0 196 244 304 543 851 1830
65 5.89 9.45 13.60 20.00 26.6 43.8 62.8 92.8 123.0 161.0 207 257 319 566 886 1890
70 6.28 10.10 14.40 21.20 28.2 46.3 66.4 97.9 130.0 169.0 217 269 334 590 910 1950
75 10.70 15.30 22.50 29.8 48.8 70.0 102.0 137.0 177.0 227 282 348 614 950 2010
80 11.30 16.20 23.70 31.4 51.3 73.6 107.0 144.0 186.0 238 295 363 637 990 2080
85 25.00 33.0 53.8 77.2 112.0 150.0 194.0 247 308 378 661 1020 2140
90 26.20 34.6 56.3 80.8 117.0 157.0 202.0 258 321 393 685 1060 2200
95 27.50 35.2 59.8 84.4 122.0 164.0 210.0 268 333 408 708 1100 2260
100 28.70 37.7 61.3 88.0 127.0 170.0 218.0 279 346 423 732 1140 2320
110 40.9 66.4 95.2 137.0 184.0 235.0 300 371 453 779 1200 2450
120 71.4 102.0 147.0 197.0 251.0 320 397 483 827 1260 2570
130 76.4 109.0 157.0 210.0 268.0 340 421 513 874 1330 2690
140 81.4 116.0 167.0 224.0 284.0 361 448 543 921 1400 2820
150 86.4 123.0 177.0 237.0 300.0 381 473 572 969 1470 2940
160 316.0 402 498 602 1010 1540 3060
170 332.0 422 523 632 1060 1610 3180
180 348.0 442 548 662 1110 1680 3310
190 364.0 462 573 692 1160 1740 3430
200 380.0 484 598 722 1210 1810 3560

Weights are in kilograms per 1,000 pieces unless otherwise specified. All weights are approximations and strictly informative.
