DIN 927

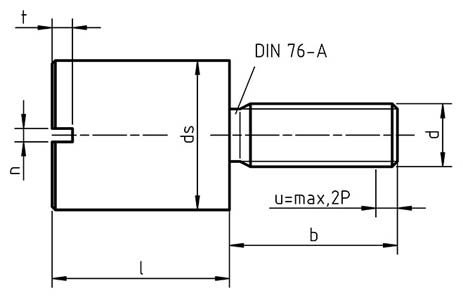

DIN 927 Slotted Shoulder Screws Dimensions

Thread d	p	b		dk		f	n			t
		nom=min	max	nom=max	min	max	nominal	min	max	min	max
M1	0.25	1.8	2.05	1.6	1.575	0.2	0.2	0.26	0.4	0.4	0.52
M1.2	0.25	1.8	2.05	1.8	1.775	0.2	0.25	0.31	0.45	0.4	0.52
M1.4	0.3	2.2	2.45	2	1.975	0.25	0.25	0.31	0.45	0.48	0.63
M1.6	0.35	2.5	2.75	2.2	2.175	0.3	0.3	0.36	0.5	0.56	0.74
M2	0.4	2.8	3.05	2.8	2.775	0.4	0.3	0.36	0.5	0.64	0.84
M2.5	0.45	3.5	3.8	3.5	3.47	0.5	0.4	0.46	0.6	0.72	0.95
M3	0.5	4.5	4.8	4	3.97	0.5	0.5	0.56	0.7	0.8	1.05
M3.5	0.6	5.5	5.8	4.5	4.47	0.7	0.5	0.56	0.7	0.96	1.21
M4	0.7	6	6.3	5.5	5.47	0.8	0.6	0.66	0.8	1.12	1.42
M5	0.8	7	7.36	6.5	6.464	0.8	0.8	0.86	1	1.28	1.63
M6	1	8	8.36	8	7.964	1	1	1.06	1.2	1.6	2
