DIN 923

Equivalent Standards

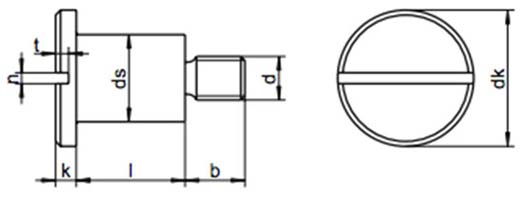

DIN 922 Slotted Pan Head Screws with Shoulder Dimensions

Length	dk	k	n	t min.	b	ds	Ø
M 3	7	1.8	0.8	0.9	4.5	4.0	0.8 x 4.0
M 4	8.5	2.4	1	1.2	6.0	5.5	1.0 x 5.5
M 5	11	2.7	1.2	1.3	7.0	7.0	1.2 x 7.0
M 6	13	3.1	1.6	1.5	9.0	8.0	1.6 x 9.0
M 8	16	3.8	2.0	1.9	11.0	10.0	2.0 x 12.0
