DIN 916

Equivalent Standards

DIN 916 Hexagon Socket Set Screws with Cup Point Dimensions

Dimensions	s	dv max
M 1.4	0.7	0.7
M 1.6	0.7	0.8
M 2	0.9	1
M 2.5	1.3	1.5
M 3	1.5	1.4
M 4	1.2	2
M 5	2.5	2.5
M 6	3	3
M 8	4	5
M 10	5	6
M 12	6	8
M 14	6	9
M 16	8	10
M 20	10	14
M 24	12	16

DIN 916 Socket Set Screws Weights

Diameter	M1.4	M1.6	M1.8	M2	M2.5	M3	M4	M5	M6	M8	M10	M12	M16	M20	M24
Length
2.5	0.018	0.019	0.030
3	0.022	0.028	0.036	0.044	0.075
4	0.029	0.037	0.048	0.059	0.100	0.14
5	0.036	0.046	0.060	0.074	0.125	0.18	0.255	0.42
6	0.043	0.056	0.072	0.089	0.150	0.22	0.38	0.54	0.74
8				0.119	0.199	0.31	0.53	0.78	1.09	1.88
10				0.148	0.249	0.40	0.68	1.02	1.44	2.51
12						0.49	0.83	1.26	1.79	3.14	4.73
16						0.67	1.13	1.74	2.49	4.40	6.73	9.5
20						0.85	1.43	1.22	3.19	5.66	8.71	12.3	20.9
25								2.82	4.07	7.25	11.2	15.9	27.4	41.4
30									4.95	8.84	13.7	19.5	34.0	51.7	70.3
35									5.83	10.40	16.2	23.1	40.5	62.0	85.3
40										12.00	18.7	26.7	47.1	72.3	100
45														82.6	115
50														92.9	130
55															145
60															160

Weights are in kilograms per 1,000 pieces unless otherwise specified. All weights are approximations and strictly informative.

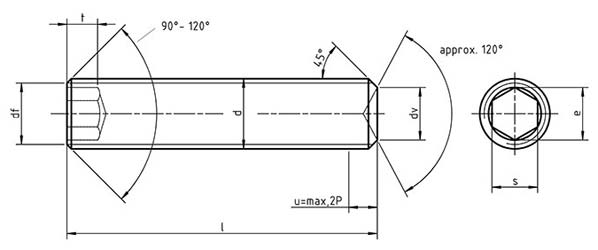

l - length of Bolts
d - the nominal diameter of the thread
s - size hex head turnkey
t - groove depth
dv - diameter of the hole
