DIN 915

Equivalent Standards

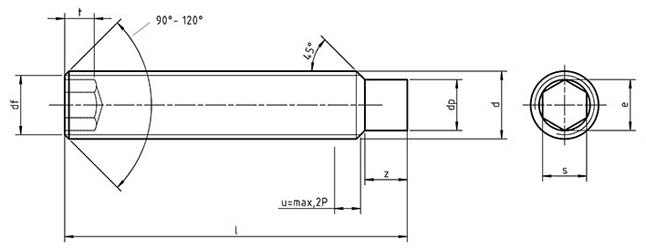

DIN 915 Hexagon socket set screws with full dog point Dimensions

d	dp	t	s
M 3	2	1.2	1.5
M 4	2.5	1.5	2
M 5	3.5	2	2.5
M 6	4	2	3
M 8	5.5	3	4
M 10	7	4	5
M 12	8.5	4.8	6
M 16	12	6.4	8
M 20	15	8	10
M 24	18	10	12

DIN 915 Socket Set Screws Weights

Diameter	M1.4	M1.6	M1.8	M2	M2.5	M3	M4	M5	M6	M8	M10	M12	M16	M20	M24
Length
2.5	0.018	0.019	0.030
3	0.022	0.028	0.036	0.044	0.075
4	0.029	0.037	0.048	0.059	0.100	0.14
5	0.036	0.046	0.060	0.074	0.125	0.18	0.255	0.42
6	0.043	0.056	0.072	0.089	0.150	0.22	0.38	0.54	0.74
8				0.119	0.199	0.31	0.53	0.78	1.09	1.88
10				0.148	0.249	0.40	0.68	1.02	1.44	2.51
12						0.49	0.83	1.26	1.79	3.14	4.73
16						0.67	1.13	1.74	2.49	4.40	6.73	9.5
20						0.85	1.43	1.22	3.19	5.66	8.71	12.3	20.9
25								2.82	4.07	7.25	11.2	15.9	27.4	41.4
30									4.95	8.84	13.7	19.5	34.0	51.7	70.3
35									5.83	10.40	16.2	23.1	40.5	62.0	85.3
40										12.00	18.7	26.7	47.1	72.3	100
45														82.6	115
50														92.9	130
55															145
60															160

Weights are in kilograms per 1,000 pieces unless otherwise specified. All weights are approximations and strictly informative.

l - length of Bolts
d - the nominal diameter of the thread
t - groove depth
dp - diameter of the ejector.
