DIN 912 VG

Equivalent Standards

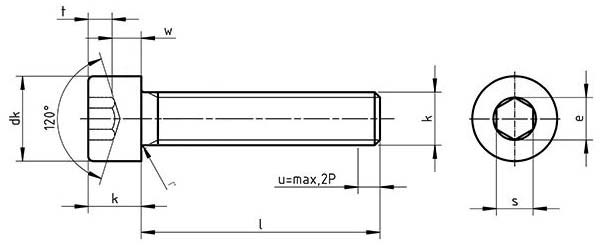

DIN 912 VG Hexagon socket Head Cap Screws full thread Dimensions

d	s	t min.	b max.	k max.	dk max.
M1.4	1.3	0.6	10	1.4	2.6
M1.6	1.5	0.7	12	1.6	3
M2	1.5	1	14	2	3.8
M2.5	2	1.1	16	2.5	4.5
M3	2.5	1.9	18	3	5.68
M4	3	2.5	20	4	7.22
M5	4	4.58	22	5	8.72
M6	5	5.72	24	6	10.22
M8	6	6.86	28	8	13.27
M10	8	9.15	32	10	16.27
M12	10	11.43	36	12	18.27
M14	12	13.72	40	14	21.33
M16	14	16	44	16	24.33
M18	14	16	48	18	27.33
M20	17	19.44	52	20	30.33
M24	19	21.73	60	24	36.39
