DIN 85

DIN 85 Equivalent Standards

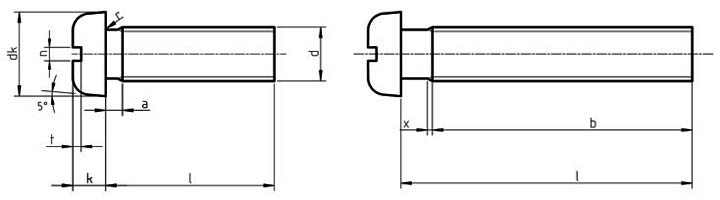

Thread d	p	a	b	dk		da	k		n			r	rt	t	w	X
Thread d	p	max	min	nom=max	min	max	nom=max.	min.	nom.	max.	min.	min.	ref.	min.	min.	max
M1.6	0.35	0.7	25	3.2	2.9	2	1.00	0.86	0.4	0.60	0.46	0.1	0.5	0.35	0.3	0.9
M2	0.4	0.8	25	4.0	3.7	2.6	1.30	1.16	0.5	0.70	0.56	0.1	0.6	0.5	0.4	1
M2.5	0.45	0.9	25	5.0	4.7	3.1	1.50	1.36	0.6	0.80	0.66	0.1	0.8	0.6	0.5	1.1
M3	0.5	1	25	5.6	5.3	3.6	1.80	1.66	0.8	1.00	0.86	0.1	0.9	0.7	0.7	1.25
M3.5	0.6	1.2	38	7.00	6.64	4.1	2.10	1.96	1	1.20	1.06	0.1	1	0.8	0.8	1.5
M4	0.7	1.4	38	8.00	7.64	4.7	2.40	2.26	1.2	1.51	1.26	0.2	1.2	1	1	1.75
M5	0.8	1.6	38	9.50	9.14	5.7	3.00	2.86	1.2	1.51	1.66	0.2	1.5	1.2	1.2	2
M6	1	2	38	12	11.57	6.8	3.6	3.3	1.6	1.91	1.66	0.25	1.8	1.4	1.4	2.5
M8	1.25	2.5	38	16	15.57	9.2	4.8	4.5	2	2.31	2.06	0.4	2.4	1.9	1.9	3.2
M10	1.5	3	38	20	19.48	11.2	6.0	5.7	2.5	2.81	2.56	0.4	3	2.4	2.4	3.8

Diameter	M1	M1.2	M1.4	M1.6	M2	M2.3	M2.5	M2.6	M3	M3.5	M4	M5	M6	M8	M10
Length	M1	M1.2	M1.4	M1.6	M2	M2.3	M2.5	M2.6	M3	M3.5	M4	M5	M6	M8	M10
2	0.025	0.038	0.053	0.07
3	0.030	0.045	0.062	0.082	0.160	0.240	0.272	0.340	0.471
4	0.035	0.052	0.071	0.094	0.179	0.275	0.302	0.373	0.515	0.728	1.02
5	0.040	0.059	0.080	0.105	0.198	0.290	0.332	0.405	0.560	0.786	1.09
6		0.067	0.089	0.117	0.217	0.316	0.362	0.438	0.604	0.845	1.17	2.06
8			0.106	0.140	0.254	0.368	0.422	0.504	0.692	0.966	1.33	2.20	3.56
10			0.124	0.163	0.291	0.419	0.482	0.570	0.780	1.080	1.47	2.55	3.92	7.85
12				0.186	0.329	0.471	0.542	0.635	0.868	1.200	1.63	2.80	4.27	8.49	14.6
14				0.209	0.365	0.523	0.602	0.700	0.956	1.320	1.79	3.05	4.62	9.13	15.6
16				0.232	0.402	0.575	0.662	0.765	1.040	1.440	1.95	3.30	4.98	9.77	16.6
18					0.440	0.625	0.722	0.831	1.130	1.560	2.10	3.54	5.34	10.40	17.6
20					0.478	0.676	0.782	0.904	1.220	1.680	2.25	3.78	5.69	11.00	18.6
22								0.969	1.310	1.800	2.40	4.02	6.04	11.70	19.6
25								1.070	1.440	1.980	2.64	4.40	6.56	12.60	21.1
28								1.170	1.570	2.160	2.87	4.67	7.10	13.60	22.6
30								1.240	1.660	2.280	3.02	5.02	7.45	14.20	23.6
35									1.880	2.570	3.41	5.62	8.25	15.80	26.1
40									2.100	2.870	3.80	6.25	9.20	17.40	28.6
45										3.170	4.17	6.88	10.00	18.90	31.1
50										3.470	4.57	7.50	10.90	20.60	33.6
55														22.10	36.1
60															38.6

Weights are in kilograms per 1,000 pieces unless otherwise specified. All weights are approximations and strictly informative.
