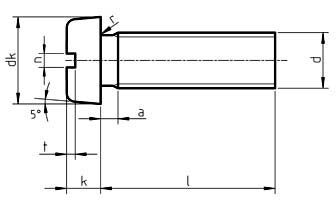

Din 84

DIN 84 Equivalent Standards

d	k	dk	t	t max	n
M 1	0.7	2	0.25	0.3	0.25
M 1.2	0.8	2.3	0.3	0.5	0.3
M 1.4	0.9	2.6	0.4	0.6	0.3
M 1.6	1	3	0.45	0.7	0.4
M 1.7	1.1	3.2	0.55	0.9	0.4
M 2	1.3	3.8	0.6	0.8	0.5
M 2.3	1.5	4.4	0.7	0.9	0.6
M 2.5	1.6	4.5	0.7	0.9	0.6
M 2.6	1.7	5	0.8	1	0.6
M 3	2	5.5	0.9	1.15	0.8
M 3.5	2.4	6	1	1.2	1
M 4	2.6	7	1.2	1.5	1
M 5	3.3	8.5	1.5	1.8	1.2
M 6	3.9	10	1.8	2.2	1.6
M 8	5	13	2.1	2.6	2
M 10	6	16	2.4	3	2.5
M 12	6	22	2.4	3	3

Diameter	M1	M1.2	M1.4	M1.6	M2	M2.3	M2.5	M2.6	M3	M3.5	M4	M5	M6	M8	M10
Length	M1	M1.2	M1.4	M1.6	M2	M2.3	M2.5	M2.6	M3	M3.5	M4	M5	M6	M8	M10
2	0.025	0.038	0.053	0.07
3	0.030	0.045	0.062	0.082	0.160	0.240	0.272	0.340	0.471
4	0.035	0.052	0.071	0.094	0.179	0.275	0.302	0.373	0.515	0.728	1.02
5	0.040	0.059	0.080	0.105	0.198	0.290	0.332	0.405	0.560	0.786	1.09
6		0.067	0.089	0.117	0.217	0.316	0.362	0.438	0.604	0.845	1.17	2.06
8			0.106	0.140	0.254	0.368	0.422	0.504	0.692	0.966	1.33	2.20	3.56
10			0.124	0.163	0.291	0.419	0.482	0.570	0.780	1.080	1.47	2.55	3.92	7.85
12				0.186	0.329	0.471	0.542	0.635	0.868	1.200	1.63	2.80	4.27	8.49	14.6
14				0.209	0.365	0.523	0.602	0.700	0.956	1.320	1.79	3.05	4.62	9.13	15.6
16				0.232	0.402	0.575	0.662	0.765	1.040	1.440	1.95	3.30	4.98	9.77	16.6
18					0.440	0.625	0.722	0.831	1.130	1.560	2.10	3.54	5.34	10.40	17.6
20					0.478	0.676	0.782	0.904	1.220	1.680	2.25	3.78	5.69	11.00	18.6
22								0.969	1.310	1.800	2.40	4.02	6.04	11.70	19.6
25								1.070	1.440	1.980	2.64	4.40	6.56	12.60	21.1
28								1.170	1.570	2.160	2.87	4.67	7.10	13.60	22.6
30								1.240	1.660	2.280	3.02	5.02	7.45	14.20	23.6
35									1.880	2.570	3.41	5.62	8.25	15.80	26.1
40									2.100	2.870	3.80	6.25	9.20	17.40	28.6
45										3.170	4.17	6.88	10.00	18.90	31.1
50										3.470	4.57	7.50	10.90	20.60	33.6
55														22.10	36.1
60															38.6

Weights are in kilograms per 1,000 pieces unless otherwise specified. All weights are approximations and strictly informative.
