DIN 7983 TX

Equivalent Standards

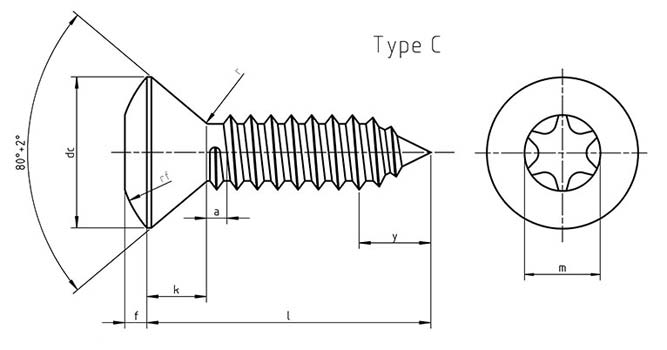

DIN 7983 TX Dimensions

Size	Dk	K max	f	ISR	y
ST 2.2	4.3	1.3	2	-	2
ST 2.9	5.5	1.7	3.2	T10	2.6
ST 3.5	6.8	2.1	4.3	T15	3.2
ST 3.9	7.5	2.3	4.2	-	3.5
ST 4.2	8.1	2.5	4.6	T20	3.7
ST 4.8	9.55	3	5.1	T25	4.2
ST 5.5	10.8	3.4	6.5	T25	5
ST 6.3	12.4	3.8	6.8	T30	6

DIN 7983 Phillip Countersunk Head Tapping Screws Weights

Diameter	M2.2	M2.9	M3.5	M3.9	M4.2	M4.8	M5.5	M6.3
Height
4.5	0.14
6.5	0.18	0.332
9.5	0.24	0.44	0.72	0.89
13	0.31	0.566	0.9	1.11	1.32	1.88
16	0.37	0.674	1.05	1.3	1.53	2.18	3.12	4
19		0.782	1.2	1.49	1.74	2.48	3.5	4.54
22			1.35	1.68	1.95	2.78	3.89	5.08
25			1.5	1.87	2.16	3.08	4.28	5.62
32					2.65	3.78	5.19	6.88
38							5.97	7.96

Weights are in kilograms per 1,000 pieces unless otherwise specified. All weights are approximations and strictly informative.
