DIN 7516 E
» Resources » Dimensional Standards » Screws » DIN 7516 E
» Resources » Dimensional Standards » Screws » DIN 7516 E

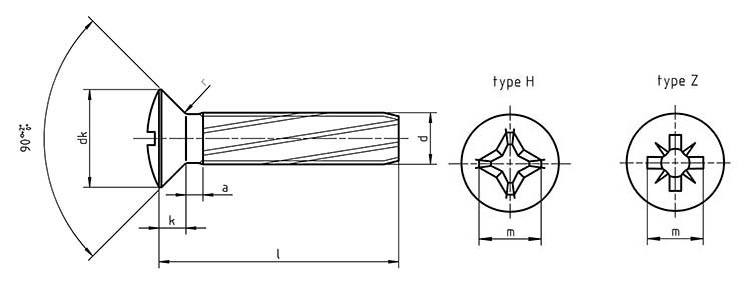

| d | k max | f | d2 | m | Bit-PH |
|---|---|---|---|---|---|
| M2.5 | 1.5 | 0.6 | 4.7 | 2.8 | 1 |
| M3 | 1.65 | 0.75 | 5.6 | 3.1 | 1 |
| M4 | 2.2 | 1 | 7.5 | 4.5 | 2 |
| M5 | 2.5 | 1.25 | 9.2 | 5.3 | 2 |
| M6 | 3 | 1.5 | 11 | 6.8 | 3 |
| M8 | 4 | 2 | 14.5 | 9 | 4 |
