DIN 7513 F

Equivalent Standards

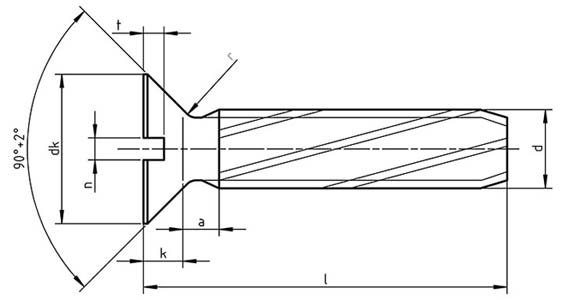

DIN 7513 F Hex tapping screws countersunk head with slot F Dimensions

Thread d	dk		k	n			r	t		case depth
	nominal = max	min	max	nominal	min	max	max	max	min	min	max
M2.5	4.7	4.4	1.5	0.6	0.66	0.8	0.25	0.7	0.5	0.04	0.12
