DIN 7504 K

Equivalent Standards

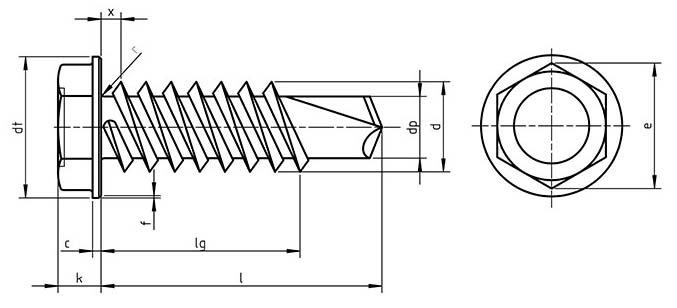

DIN 7504 K Dimensions

Thread d	c	dc		f	e	k		k	r	s		t		Drilling range		dp
	min	max	min	approx	min	max	min	min	max	nom=max	min	min	max	from	to	max
ST3.5	0.6	8.3	7.6	0.4	5.96	3.45	3.2	1.55	0.5	5.5	5.32	1	1.4	0.7	2.25	2.8
