DIN 6332
» Resources » Dimensional Standards » Screws » DIN 6332
» Resources » Dimensional Standards » Screws » DIN 6332

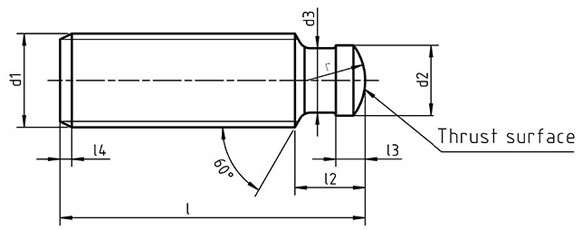

| d1 | d2 h11 | d3 0-0.1 | r | l2 | l3 |
|---|---|---|---|---|---|
| M6 | 4.5 | 4 | 3 | 6 | 2.5 |
| M8 | 6 | 5.4 | 5 | 7.5 | 3 |
| M10 | 8 | 7.2 | 6 | 9 | 4.5 |
| M12 | 8 | 7.2 | 6 | 10 | 4.5 |
| M16 | 12 | 11 | 9 | 12 | 5 |
| M20 | 15.5 | 14.4 | 13 | 14 | 5.5 |
