DIN 5914
» Resources » Dimensional Standards » Screws » DIN 5914
» Resources » Dimensional Standards » Screws » DIN 5914

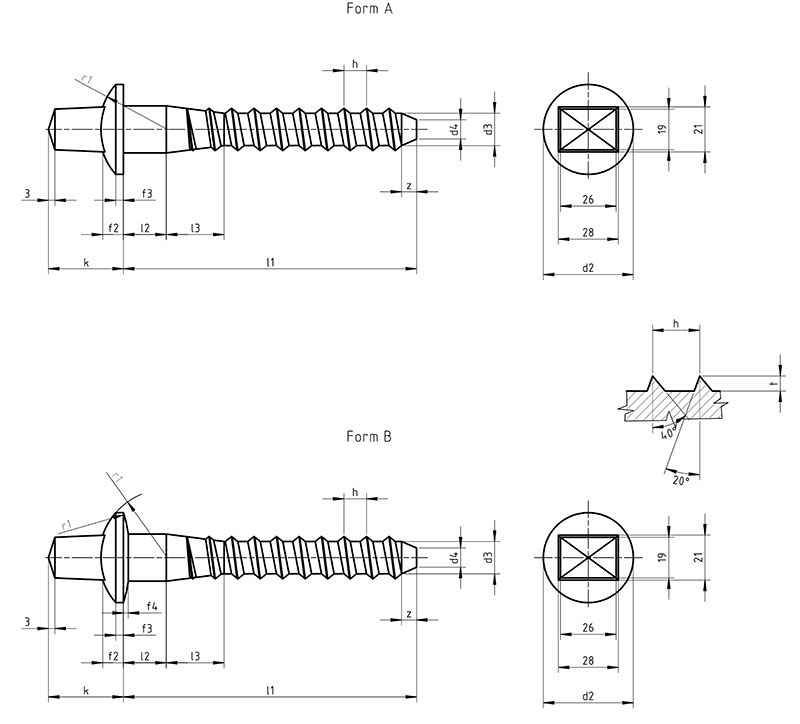

| Form | d1 | l1 | d2 | d3 | d4 | f2 | f3 | f4 | k | l2 | l3 | r1 | z | h | t | weight kg/pc |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 22 | 140 | 42 | 15 | 9 | 9.7 | 3.6 | - | 35 | 20 | 27 | 32 | 7 | 11 | 3.5 | 0.456 |
| A | 22 | 165 | 42 | 15 | 9 | 9.7 | 3.6 | - | 35 | 45 | 27 | 32 | 7 | 11 | 3.5 | 0.531 |
| B | 22 | 140 | 50 | 15 | 9 | 9.7 | 2.3 | 2.5 | 35 | 20 | 27 | 40 | 7 | 11 | 3.5 | 0.498 |
| B | 22 | 150 | 50 | 15 | 9 | 9.7 | 2.3 | 2.5 | 35 | 30 | 27 | 40 | 7 | 11 | 3.5 | 0.528 |
| A | 24 | 150 | 44 | 16 | 10 | 11 | 4 | - | 35 | 25 | 30 | 32 | 8 | 12.5 | 4 | 0.545 |
| B | 26 | 130 | 54 | 18 | 10 | 13.1 | 4 | 2.5 | 39 | 20 | 35 | 40 | 8 | 13.5 | 4 | 0.654 |
| B | 26 | 150 | 54 | 18 | 10 | 13.1 | 4 | 2.5 | 39 | 20 | 35 | 40 | 8 | 13.5 | 4 | 0.702 |
