DIN 564 A

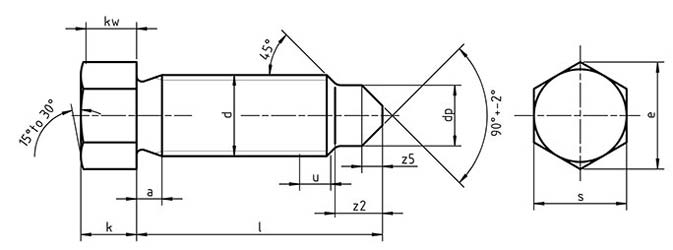

DIN 564 A Hexagon set screws with cone point Dimensions

d	p		k	a1	r	z2	zs	dp	e	s	l form A		l form B
	large	small									min	max	min	max
M6	1	-	5	3	0.25	3	1.75	4	8.79	8	12	60	12	40
M8	1.25	-	6	3.75	0.4	4	2.5	5.5	11.05	10	16	60	16	60
M10	1.5	-	7	4.5	0.4	5	3	7	14.38	13	20	60	20	60
M12	1.75	-	9	5.25	0.6	6	3.5	8.5	17.77	16	25	120	25	100
M16	2	-	11	6	0.6	8	4.5	12	19.92	18	30	120	30	120
M20	2.5	2	14	7.5	0.8	10	5	15	26.75	24	40	120	40	120
M24	3	2	17	9	0.8	12	6	18	33.53	30	45	120	45	120
M30	3.5	2	21	10.5	1	15	8	23	39.98	36	60	120	60	120
M36	4	3	25	12	1	18	10	28	51.28	46	80	200	80	200
