DIN 427

Equivalent Standards

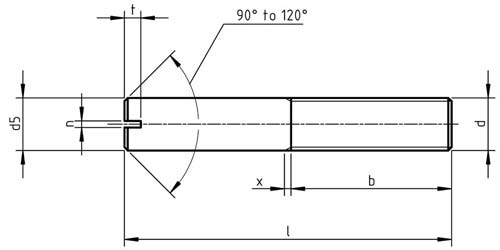

DIN 427 Slotted headless screws with flat point Dimensions

d	b	n	t min	t max
M3	3.6	0.4	0.8	1.05
M4	4.8	0.6	1.12	1.42
M5	6	0.8	1.28	1.63
M6	7.8	1	1.6	2
M8	9.6	1.2	2	2.5
M10	12	1.6	2.4	3
