DIN 316 D

Equivalent Standards

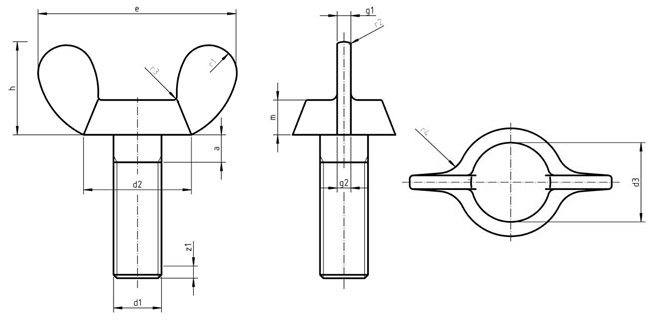

DIN 316 D Wing screws with rounded wings Dimensions

Thread size d1	P	a	d2		d3		e		g1		g2		h		m		r1	r2	r3	r4
		max	max	min	max	min	max	min	max	min	max	min	max	min	max	min	approx	approx	approx	approx
M4	0.7	2.1	8	6	7	5.5	20	18	1.9	1.1	2.3	1.7	10.5	8.5	4.6	3.2	3	Rounded	0.5	2
M5	0.8	2.4	11	8	9	7.5	26	24	2.3	1.5	2.8	2.3	13	11	6.5	4	4		1	2.5
M6	1	3	13	10	11	9	33	30	2.3	1.5	3.3	2.7	17	15	8	5	5		1	3
M8	1.25	4	16	13	12.5	10.5	39	36	2.8	2	4.4	3.6	20	18	10	6.5	6		1	3
M10	1.5	4.5	20	17	16.5	14.5	51	48	4.4	3.6	5.4	4.6	25	23	12	8	8	1	1.2	5
M12	1.75	5.3	23	20	19.5	17.5	65	62	4.9	4.1	6.4	5.6	33.5	31	14	10	10	1	1.2	6
M16	2	6	29	26	23	21	73	70	6.4	5.6	7.5	6.5	37.5	35	17	13	11	1.2	1.6	7
M20	2.5	7.5	35	32	29	27	90	86	6.9	6.1	8	7	46.5	44	21	16	14	1.6	2	8
M24	3	8	44	41	37.5	35	110	106	9.4	8.6	10.5	9.5	56.5	53.5	25	20	18	2.5	2.5	9
