DIN 910

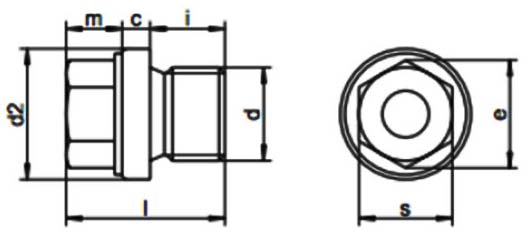

DIN 910 Hexagon Head Screw Plugs with Collar and Cylindrical Pipe Threads Dimensions

d1	d2	l	s	e	m	c	i	n
G 1/8"	14	17	10	10.89	6	3	8	10
G 1/4"	18	21	13	14.20	6	3	12	13
G 3/8"	22	21	17	18.72	6	3	12	17
G 1/2"	26	26	17	20.88	8	4	14	17
G 3/4"	32	30	24	26.17	10	4	16	24
G 1"	39	32	27	29.59	11	5	16	27
G 1 1/8"	44	32	27	29.56	11	5	16	27
G 1 1/4"	49	33	30	32.95	12	5	16	30
G 1 1/2"	55	33	30	32.95	12	5	16	30
G 1 3/4"	62	40	36	39.55	15	5	20	36
G 2	68	40	36	39.55	15	5	20	36

DIN 910 Hexagon Head Screw Plug Weights

Size		Weight
M10x1		12.0
M12x1.5		20.3
M14x1.5		25.0
M16x1.5		35.2
M18x1.5		48.6
M20x1.5	M20x2	64.5
M22x1.5		73.4
M24x1.5		93.5
M26x1.5		120
	M27x2	127
M30x1.5	M30x2	148
	M33x2	195
M36x1.5	M36x2	220
M38x1.5		238
	M39x2	255
M42x1.5	M42x2	300
M45x1.5	M45x2	340
M48x1.5	M48x2	375
M52x1.5	M52x2	430
	M56x2	620
	M60x2	695
	M64x2	774

Weights are in kilograms per 1,000 pieces unless otherwise specified. All weights are approximations and strictly informative.
