DIN 909
» Resources » Dimensional Standards » Pins » DIN 909
» Resources » Dimensional Standards » Pins » DIN 909

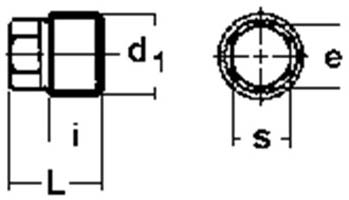

| d1 (BSP) | i | L | s | n |
|---|---|---|---|---|
| G 1/8" | 8 | 12.5 | 7 | 28 |
| G 1/4" | 10 | 15 | 9 | 19 |
| G 3/8" | 10 | 16 | 10 | 19 |
| G 1/2" | 10 | 17 | 13 | 14 |
| G 5/8" | 12 | 20 | 14 | 14 |
| G 3/4" | 12 | 20 | 17 | 14 |
| G 1" | 12 | 22 | 19 | 11 |
| G 1 1/4" | 18 | 30 | 24 | 11 |
| G 1 1/2" | 20 | 35 | 30 | 11 |
| G 1 3/4" | 20 | 35 | 30 | 11 |
| G 2 | 22 | 37 | 30 | 11 |
